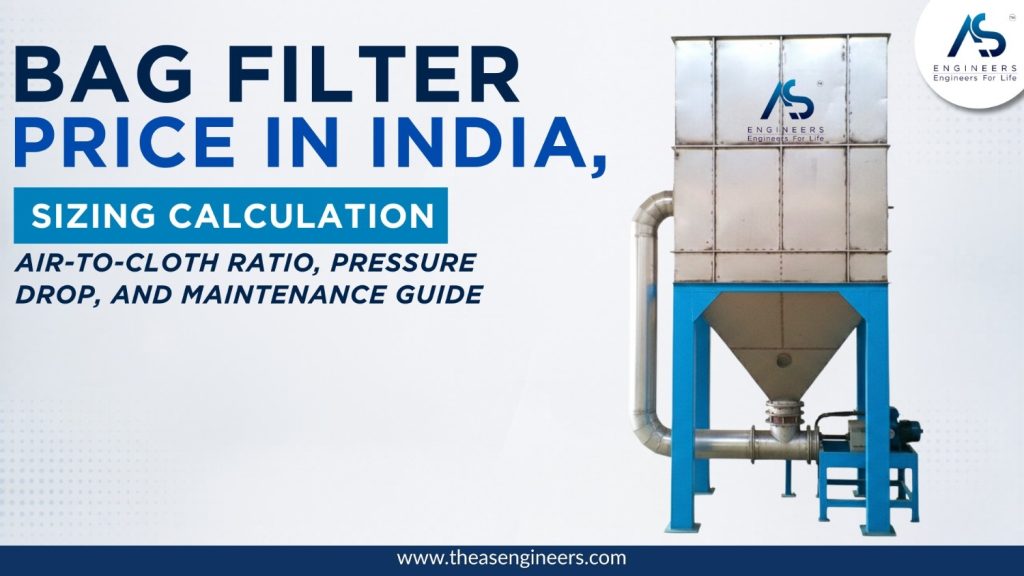

Bag Filter Price in India, Sizing Calculation, Air-to-Cloth Ratio, Pressure Drop, and Maintenance Guide
Bag filter price in India depends mainly on airflow, dust load, filter area, air-to-cloth ratio, bag material, MOC, fan static pressure, hopper discharge, automation, and site layout. A small supplier-listed unit may appear inexpensive, but a reliable industrial pulse jet bag filter must be sized around actual dust characteristics and operating conditions, not just a catalogue capacity.
For a complete system, review the duty data first, then calculate filter area, select bag media, check pressure drop, and include the required fan, ducting, rotary airlock, controls, and maintenance access. AS Engineers manufactures bag filter systems as part of its broader pollution control equipment range.
Quick answer, bag filter price in India
Public Indian supplier listings show a wide price spread for bag filters and pulse jet bag filters. Some small/basic listed units start near ₹50,000, while visible pulse jet bag filter listings commonly appear from around ₹65,000 to ₹8,50,000 depending on supplier, model, material, and scope. These figures should be treated only as market-visible references, not final engineered project prices.
For real plant duty, the final price may change significantly because the quotation may need to include the bag filter body, filter bags, cages, pulse cleaning system, compressed air header, solenoid valves, hopper, rotary airlock valve, screw conveyor, fan, ducting, damper, platform, control panel, instrumentation, insulation, explosion protection where required, erection, and commissioning.
| Requirement | Typical impact on price |
|---|---|
| Higher airflow | Larger casing, more bags, larger fan, larger ducting |
| Higher dust load | More filter area, better inlet design, stronger hopper discharge |
| Fine or sticky dust | Lower air-to-cloth ratio, better media, possible pre-separation |
| High temperature | High-temperature bags, insulation, suitable MOC, thermal design |
| Corrosive gas or dust | SS or coated parts, special bag media, higher fabrication cost |
| Continuous operation | Online pulse jet cleaning, better controls, robust discharge system |
| Low emission target | Better bag media, sealing, monitoring, leak-control design |
| Combustible dust | DHA, explosion venting/isolation, grounding and safety review |
Pulse jet bag filter price, what buyers should not miss
A pulse jet bag filter uses short bursts of compressed air to clean the filter bags during operation. It is popular in continuous dust collection because the system can clean bags without stopping the full filtration cycle.
The price of a pulse jet bag filter is not decided only by the number of bags. In many projects, the fan, ducting, compressed air quality, hopper discharge, and bag media selection decide whether the system performs reliably after installation.
When I review a bag filter inquiry, I do not start with price alone. I first check:
- Air volume in m³/hr or CFM
- Dust load in g/Nm³ or kg/hr
- Particle size and dust behavior
- Gas temperature and moisture
- Dust stickiness, abrasiveness, and hygroscopic nature
- Corrosion risk
- Required outlet emission level
- Available compressed air pressure and air quality
- Fan static pressure and duct layout
- Hopper discharge method
- Maintenance access
- Safety requirement for combustible dust
For buyers comparing vendors, a low price without these inputs is usually not a proper technical quotation. It is only a starting number.
Bag filter sizing calculation
Bag filter sizing starts with airflow and filtration velocity. In fabric filtration, the same idea is often called air-to-cloth ratio, gas-to-cloth ratio, or filtration velocity. Air-to-cloth ratio means how much air passes through a given area of filter cloth in a given time. Technical training material also treats filtration velocity and air-to-cloth ratio as interchangeable concepts.
Basic sizing formula
Required filter area = Air volume ÷ Selected filtration velocityFor metric calculation:
Filter area in m² = Air volume in m³/min ÷ Filtration velocity in m/minConvert air volume first:
m³/min = m³/hr ÷ 60Example bag filter sizing calculation
Assume:
- Air volume: 12,000 m³/hr
- Air volume in m³/min: 12,000 ÷ 60 = 200 m³/min
- Selected filtration velocity: 1.0 m/min
Required filter area = 200 ÷ 1.0 = 200 m²Now assume one filter bag size:
- Bag diameter: 160 mm, or 0.16 m
- Bag length: 3,000 mm, or 3 m
Bag surface area:
Bag area = π × diameter × length
Bag area = 3.1416 × 0.16 × 3
Bag area = 1.51 m² per bagNumber of bags:
Bags required = Required filter area ÷ Area per bag
Bags required = 200 ÷ 1.51
Bags required = 133 bags approximatelyIn practical design, the final number may be rounded up and adjusted for compartment layout, cleaning design, can velocity, dust behavior, bag spacing, access, and maintenance margin. Do not finalize a bag filter based only on this simple calculation.
Bag filter air-to-cloth ratio calculation
Air-to-cloth ratio is one of the most important sizing checks in a bag filter.
Air-to-cloth ratio = Airflow ÷ Total filter cloth areaIn metric form:
A/C ratio in m/min = Air volume in m³/min ÷ Total filter area in m²In imperial form:
A/C ratio in ft/min = Air volume in CFM ÷ Filter area in ft²A high air-to-cloth ratio means more air is forced through each square metre of bag area. That can reduce equipment size, but it can also increase pressure drop, create cleaning problems, shorten bag life, and cause bag blinding if the dust is fine, sticky, moist, or difficult to release.
A lower air-to-cloth ratio usually increases filter area and equipment size, but it can improve stability for difficult dust. The right value depends on dust loading, particle size, moisture, bag media, cleaning system, gas temperature, and operating hours.
| Dust or duty condition | Safer preliminary sizing direction |
|---|---|
| Coarse, dry, free-flowing dust | Moderate filtration velocity may work |
| Fine powder | Use conservative filtration velocity |
| Sticky or hygroscopic dust | Lower air-to-cloth ratio, check dew point and media |
| Abrasive dust | Lower velocity, good inlet distribution, wear protection |
| High temperature gas | Temperature-rated bags and thermal review |
| High dust loading | Larger filter area or cyclone pre-separator |
| Intermittent operation with moisture risk | Check shutdown condensation risk |
| Combustible dust | Require safety review, DHA, and protection design |
For high coarse-dust loading, an upstream cyclone separator can reduce the dust load entering the bag filter. For wet fumes or gas absorption duties, a scrubber may be a better fit than a dry bag filter.
Bag filter pressure drop calculation
Pressure drop is the resistance across the bag filter. It is normally measured between the dirty-air side and the clean-air side using a differential pressure gauge or transmitter.
Bag filter pressure drop = Dirty side pressure - Clean side pressureA fabric filter pressure drop is affected by:
- Clean fabric resistance
- Dust cake resistance
- Air-to-cloth ratio
- Dust loading
- Cleaning effectiveness
- Moisture and stickiness
- Bag media condition
- Inlet flow distribution
- Hopper dust backup
- Duct and fan system resistance
EPA material describes a fabric filter as a unit where particle-laden gas passes through fabric bags or cartridges, dust is retained on the upstream face, and cleaned gas is vented out. This is why pressure drop cannot be treated as a fixed number from the bag alone. It is a system behavior.
Many baghouses operate around 4 to 6 inches water column, which is roughly 100 to 150 mmWC, while some applications can run higher. This is a general reference range, not a design guarantee.
Simple operating interpretation
| Pressure drop reading | What it may indicate |
|---|---|
| Normal and stable | Bags, cleaning, airflow, and dust discharge are likely balanced |
| Slowly rising | Dust cake buildup, weak cleaning, higher dust load, moisture, or blinding |
| Suddenly high | Hopper backup, cleaning failure, blocked outlet, fan/duct issue, wet bags |
| Too low suddenly | Torn bags, leakage, bypass, poor sealing, missing dust cake |
| Fluctuating heavily | Unstable process load, pulse valve issue, airflow surge, hopper re-entrainment |
For blower-side design, also connect the bag filter pressure drop with the complete fan duty. AS Engineers’ dust collection blower guide is useful when the buyer also needs fan sizing support.
Bag filter pressure drop troubleshooting
Pressure drop troubleshooting should not start with bag replacement. First check the operating symptoms and isolate the likely cause.
High pressure drop
Common causes:
- Air-to-cloth ratio is too high
- Dust load increased after process change
- Pulse cleaning is weak or not working
- Compressed air pressure is low
- Compressed air contains oil or moisture
- Pulse valve, diaphragm, solenoid, or timer has failed
- Bags are blinded
- Gas temperature has fallen near condensation condition
- Hopper is full or rotary airlock is not discharging
- Ducting is partially blocked
- Filter area is insufficient for actual airflow
Action points:
- Check differential pressure trend
- Confirm airflow and fan damper condition
- Check compressed air pressure at header
- Inspect pulse valves and solenoids
- Check hopper level and rotary airlock
- Inspect bags for blinding, caking, oil, and moisture
- Verify if raw material, dust load, or process temperature changed
Low pressure drop with visible dust emission
Common causes:
- Torn filter bags
- Poor bag seating
- Tube sheet leakage
- Damaged cages
- Access door leakage
- Clean-air side dust bypass
- Wrong or damaged bag media
- Differential pressure gauge line issue
Action points:
- Inspect clean-air plenum for dust
- Check bag sealing and snap band fitment
- Perform leak detection where required
- Inspect cages for sharp edges
- Verify DP gauge and sensing lines
- Replace damaged bags and fix leakage source
Pressure drop rises after every cleaning cycle
Common causes:
- Dust does not release properly from bags
- Pulse air pressure is insufficient
- Pulse duration or interval is wrong
- Dust is sticky or hygroscopic
- Moisture is entering the system
- Bag media is not suitable
- Hopper discharge is poor and dust re-enters
Action points:
- Check pulse cleaning sequence
- Check compressed air dryer and moisture trap
- Compare inlet temperature against moisture risk
- Inspect hopper discharge
- Review dust chemistry and media selection
- Reduce air-to-cloth ratio if sizing is aggressive
Bag filter bag blinding causes
Bag blinding means dust gets embedded into the filter media or forms a layer that cannot be removed properly by normal cleaning. Once bags are blinded, pressure drop remains high even after pulse cleaning.
| Bag blinding cause | What happens in operation | Practical check |
|---|---|---|
| Moisture condensation | Dust becomes sticky and blocks pores | Check gas temperature and dew point risk |
| Oil in compressed air | Bags get oily and dust sticks permanently | Check compressor, dryer, oil separator |
| Hygroscopic dust | Dust absorbs moisture and cakes | Review material behavior and humidity |
| Too high air-to-cloth ratio | Dust penetrates and overloads bags | Recheck filter area calculation |
| Weak pulse cleaning | Dust cake is not released | Check valves, solenoids, pressure, timer |
| Wrong bag media | Media cannot release the dust properly | Review media type, finish, temperature rating |
| Fine submicron dust | Dust packs tightly into media | Use suitable media and conservative sizing |
| Hopper backup | Dust re-enters and overloads bags | Check RAV, screw conveyor, hopper bridging |
| Shutdown condensation | Moisture forms during cooling | Review start-stop procedure |
| Chemical attack | Media loses performance or strength | Check gas chemistry and media compatibility |
Wrong bag media and poor process data are common reasons for repeated bag blinding. Before replacing bags with the same material again, check why the bags blinded in the first place.
Baghouse maintenance checklist
A baghouse maintenance checklist should track differential pressure, emissions, pulse cleaning, compressed air, bags, cages, hopper discharge, fan, ducting, and safety items. Do not run maintenance only after visible emissions appear.
| Frequency | Maintenance check | Why it matters |
|---|---|---|
| Daily | Record differential pressure | Finds early signs of blinding or leakage |
| Daily | Check visible emissions at outlet/stack | Indicates torn bags or bypass risk |
| Daily | Check compressed air pressure | Weak pulse cleaning raises DP |
| Daily | Check hopper and rotary airlock discharge | Prevents dust backup and re-entrainment |
| Weekly | Inspect pulse valves and solenoids | Prevents cleaning failure |
| Weekly | Drain moisture from air line if applicable | Prevents oily or wet pulse air |
| Weekly | Check fan vibration and unusual noise | Finds imbalance, bearing, or duct blockage issues |
| Monthly | Inspect access door sealing | Prevents dust leakage and false air entry |
| Monthly | Clean DP gauge sensing lines | Avoids false pressure readings |
| Monthly | Inspect hopper, RAV, screw conveyor | Prevents bridging and choking |
| Quarterly | Inspect sample bags and cages | Finds abrasion, corrosion, snap band issues |
| Quarterly | Check inlet baffle and gas distribution | Prevents localized bag wear |
| Half-yearly | Review DP trend and bag life | Finds sizing or operating mismatch |
| Annually | Plan internal inspection during shutdown | Checks tube sheet, welds, corrosion, structure |
| Annually | Review safety devices and grounding | Critical for combustible dust duties |
Combustible dust requires a separate safety review. OSHA’s technical material explains that combustible dust can present flash-fire or explosion hazards when suspended in air, and NFPA 652 defines combustible dust around this hazard condition. For such duties, do not finalize a baghouse without proper dust hazard evaluation and qualified safety input.
Bag filter price vs lifecycle cost
A low initial price can become expensive if the system runs at high pressure drop, consumes more fan power, blinds bags frequently, or needs repeated shutdowns.
| Buyer focus | Better decision method |
|---|---|
| Lowest equipment price | Compare total system scope and maintenance cost |
| Number of bags only | Compare filter area, A/C ratio, media, and access |
| Motor HP only | Compare actual static pressure and duct resistance |
| Body material only | Check dust/gas corrosiveness and temperature |
| Emission claim only | Check media, sealing, leak testing, and monitoring |
| Delivery speed only | Check whether sizing inputs are complete |
For plants with boilers, furnaces, dryers, grinders, material transfer points, packing lines, cement handling, chemicals, pigments, food powders, and pharmaceutical dust, the practical question is not “What is the cheapest bag filter?” The better question is, “What system will hold stable airflow and pressure drop under my real dust condition?”
When a bag filter is the right choice
A bag filter is usually a good fit when the process involves dry particulate collection and the plant needs repeatable dust control from a ducted source.
Good-fit applications include:
- Powder transfer points
- Silo venting
- Cement, lime, and mineral dust handling
- Chemical powder handling
- Pigment and dye dust collection
- Food powder dust collection
- Dryer exhaust dust collection where moisture is controlled
- Boiler and furnace dust collection where temperature and media are suitable
- Material conveying system receivers
A bag filter may not be the best standalone choice when:
- Gas is wet or condensing
- Dust is extremely sticky without process conditioning
- Gas absorption is required
- Mist, vapour, or soluble gas removal is the main duty
- Coarse dust load is very high and should be reduced first
- Combustible dust risk has not been evaluated
Where the duty is mixed, AS Engineers may review whether the system needs a cyclone, bag filter, scrubber, fan, ducting, or combined pollution control equipment arrangement.
RFQ checklist for bag filter quotation
Share these inputs before asking for final price:
| RFQ input | Details to provide |
|---|---|
| Application | Process source, dust source, industry |
| Airflow | m³/hr, Nm³/hr, or CFM |
| Gas temperature | Normal, minimum, maximum |
| Dust load | g/Nm³, kg/hr, or expected loading |
| Dust particle size | Fine, coarse, fibrous, abrasive |
| Dust behavior | Sticky, hygroscopic, oily, combustible, corrosive |
| Moisture condition | Gas humidity, dew point risk, condensation possibility |
| Required outlet emission | Target mg/Nm³ if specified |
| Bag media preference | Polyester, PPS, aramid, PTFE, antistatic, coated media, etc. |
| MOC | MS, SS, coating, lining, special requirement |
| Fan scope | Existing fan or new fan required |
| Ducting scope | Included or by client |
| Hopper discharge | Rotary airlock, screw conveyor, manual discharge |
| Automation | Timer-based, DP-based, PLC, alarms |
| Site space | Height, platform, access, layout constraints |
| Safety requirement | Combustible dust data, Kst/Pmax if available |
| Utilities | Power supply, compressed air pressure, instrument air quality |
| Documentation | GA drawing, QAP, test certificates, manuals |
For a duty-specific quotation, connect with AS Engineers through the contact page and share the above process data. That gives the engineering team a practical basis for selection instead of a generic estimate.
Common mistakes while buying a bag filter
Buying only by airflow
Airflow is important, but airflow alone does not define a bag filter. Dust load, filtration velocity, gas temperature, moisture, and media selection can completely change the design.
Ignoring pressure drop
If the selected filter area is too low, the fan may operate at higher resistance, airflow may drop, and production capture efficiency may suffer.
Treating all dust as dry dust
Many maintenance problems start because the dust looked dry during inquiry but behaved sticky, oily, hygroscopic, or moist during operation.
Not checking compressed air quality
Pulse jet systems depend on clean, dry compressed air. Wet or oily air can damage cleaning performance and contribute to bag blinding.
Ignoring hopper discharge
A good filter with a poor rotary airlock or choked hopper will still underperform. Dust must leave the collector reliably.
Not planning maintenance access
Bag replacement, cage inspection, valve maintenance, and hopper cleaning need safe access. A compact layout should not create unsafe maintenance.
FAQs
What is the bag filter price in India?
Bag filter price in India varies widely. Public supplier listings show small/basic units starting around ₹50,000 and some pulse jet bag filter listings from around ₹65,000 to ₹8,50,000. Final industrial project pricing depends on airflow, dust load, filter area, MOC, bag media, fan, ducting, automation, discharge system, and site scope.
How is pulse jet bag filter size calculated?
Pulse jet bag filter size is calculated by dividing airflow by the selected filtration velocity or air-to-cloth ratio. In metric terms, filter area in m² equals air volume in m³/min divided by filtration velocity in m/min. The number of bags is then calculated from the surface area of each bag.
What is air-to-cloth ratio in a bag filter?
Air-to-cloth ratio is the airflow passing through each unit area of filter cloth. In metric form, it is air volume in m³/min divided by total filter area in m². A high ratio can make the unit smaller, but it can also increase pressure drop and bag maintenance risk.
What causes high pressure drop in a bag filter?
High pressure drop can be caused by overloaded bags, weak pulse cleaning, low compressed air pressure, bag blinding, moisture condensation, sticky dust, insufficient filter area, hopper dust backup, duct blockage, or process changes that increase dust loading.
What causes bag blinding in a bag filter?
Bag blinding is commonly caused by moisture, oil in compressed air, sticky or hygroscopic dust, wrong bag media, high air-to-cloth ratio, weak cleaning, fine dust penetration, hopper backup, shutdown condensation, or chemical attack on the filter media.
Conclusion
Bag filter price in India should never be judged from a small equipment listing alone. For a stable industrial dust collection system, the buyer must check airflow, air-to-cloth ratio, dust load, bag media, pressure drop, fan duty, hopper discharge, and maintenance access.
A correctly sized pulse jet bag filter can support continuous dust collection, but wrong sizing can lead to high pressure drop, bag blinding, visible emissions, short bag life, and repeated shutdowns. The safest buying approach is to prepare a proper RFQ with process data and get the system reviewed for actual site duty.
For bag filter, cyclone, scrubber, fan, and complete pollution-control system support, AS Engineers can review the process condition and suggest a configuration based on real plant requirements.
